| نام تجاری: | VIKSTARS |
| شماره مدل: | VS-STL-R |
| مقدار تولیدی: | 20 عدد |
| قیمت: | قابل مذاکره |
| جزئیات بسته بندی: | مورد: VS-STL-Z15 LAMP اندازه: 690*240*78.5mm ، اندازه CTN: 74*30*12.5cm 1pc/ctn |
| شرایط پرداخت: | T/T |

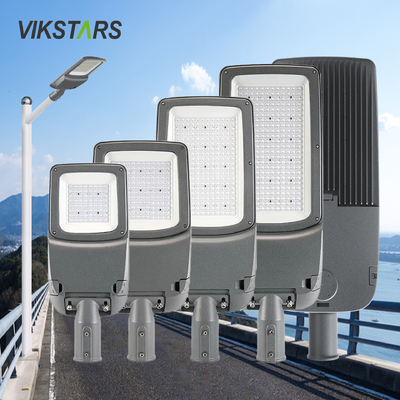

LED Street Lights 50W 100W 150W 200W 240W For High-end Project 5 Years Warranty Easy To Maintain
DELIVERY
|
LAMP NAME
|
LED STREET LIGHT
|
||||
|
MODEL NO.
|
VS-STL-R05
|
VS-STL-R10
|
VS-STL-R15
|
VS-STL-R20
|
VS-STL-R24
|
|
POWER
|
50W
|
100W
|
150W
|
200W
|
240W
|
|
INSTALL HEIGHT
|
3-4m
|
5-6m
|
6-8m
|
8-10m
|
10-12m
|
|
LED QTY
|
50pcs
|
100pcs
|
150pcs
|
200pcs
|
250pcs
|
|
BEAM ANGLE
|
70*140°
|
||||
|
VOLTAGE
|
100-265Vac
|
||||
|
PF
|
＞0.95
|
||||
|
CCT
|
Default: Cold White (Warm White / Neutral White for option)
|
||||
|
C.R.I.
|
＞70Ra
|
||||
|
INSTALL WAY
|
Horizontal / Vertical / Hug Hoop / Wall Install
(Accessories not include hug hoop, need to buy additionally)
|
||||
|
WATERPROOF
|
IP65
|
||||
|
MATERIAL
|
Die-casting Aluminum Heat Sink + PC lens + Glass Cover / Sand Grey
|
||||
|
LAMP SIZE
|
520*210*70mm
|
560*260*70mm
|
660*260*70mm
|
720*260*70mm
|
|
|
HOLDER SIZE
|
Ø60mm
|
||||
|
PACKING
|
Export Neutral Carton Packing / VIKSTARS Brand Packing / Customizing Packing
|
||||
|
SOLUTION
|
Project Solution |
Top-level Solution
|
| LEDs TYPE | 3030 | EMC3030 |
| LUMEN EFFICIENCY | 130lm/w |
≥140lm/w
|
| DRIVER | VIKSTARS Self-Developed Driver | Global Certified MEANWELL Driver |
| WARRANTY | 3 Years | 5 Years |
|
Power
|
Carton Size | Qty/ctn | G.W./ctn |
Packing
|
|
50W
|
555*245*155mm
|
1pc
|
2.90kg
|
Export Neutral Carton Packing
/ VIKSTARS Brand Packing
/ Customizing Packing
|
|
100W
|
605*285*155mm
|
3.90kg
|
||
|
150W
|
705*285*155mm
|
4.80kg
|
||
|
200W
|
755*285*155mm
|
5.10kg
|
||
|
240W
|
755*285*155mm
|
5.50kg
|
|
|
